STERILIZER DUAL 36F

LUMEELAMP – STERILIZER DUAL 36F

IT IS A MODERN UNIVERSAL STANDING DEVICE FOR COMPREHENSIVE STERILIZATION AND DISINFECTION USING UV-C RADIATION. DEPENDING ON THE MODE OF OPERATION, IT STERILIZES OBJECTS AND SURFACES OR FILTERS, CLEANS AND STERILIZES THE AIR. DOES NOT PRODUCE OZONE.

DESCREPCTION OF THE FUNCTIONING:

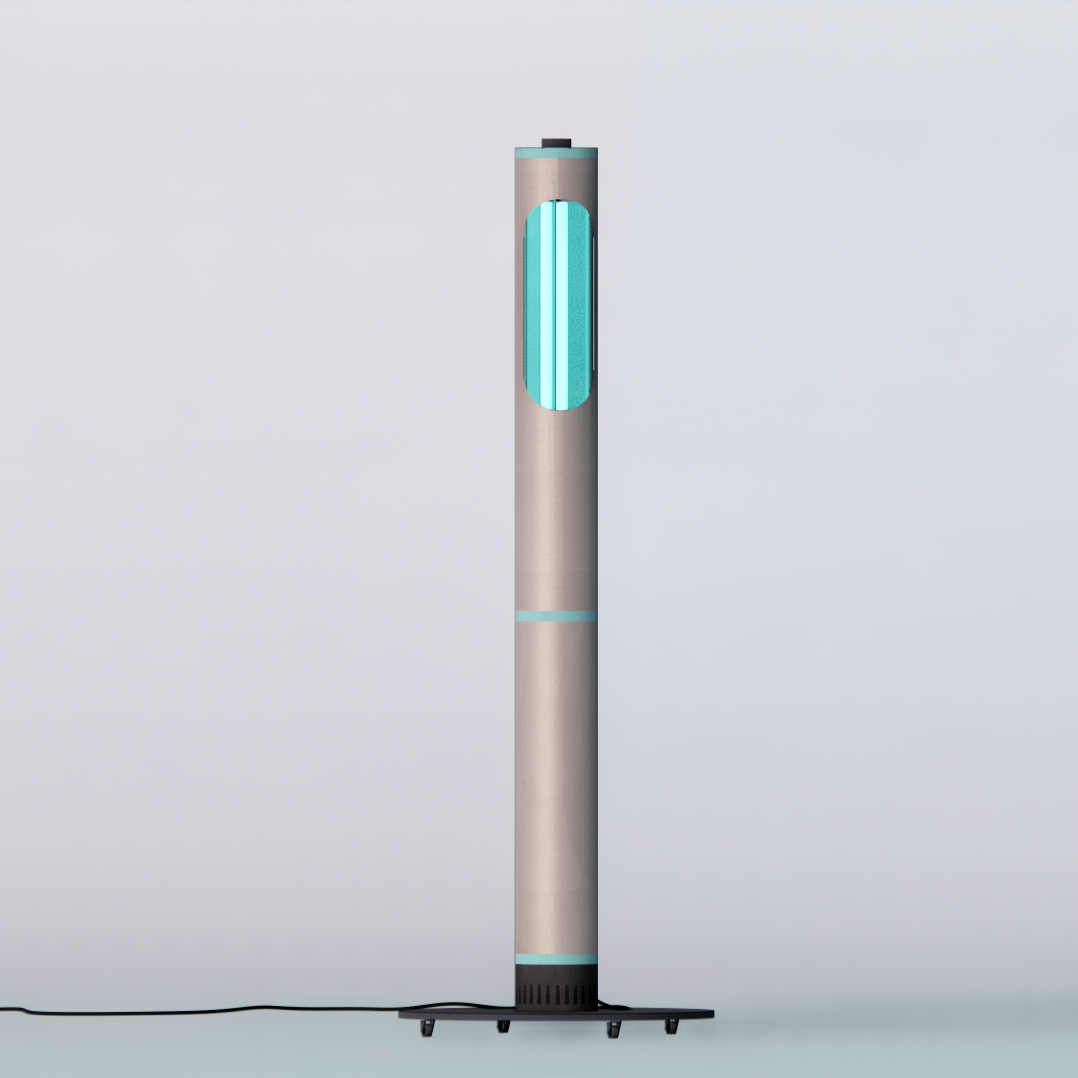

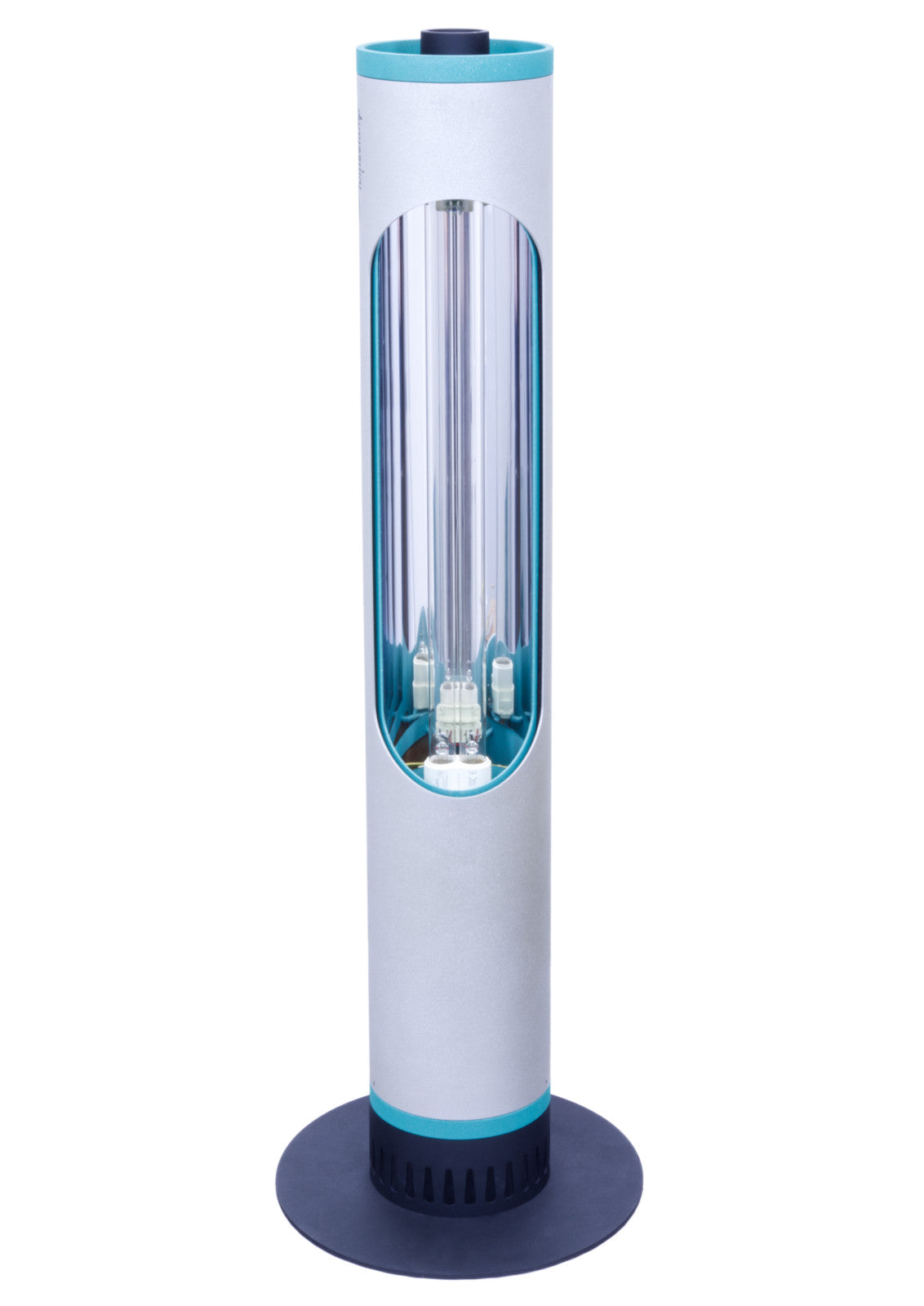

OPEN MODE

Radiation chamber open disinfection of entire rooms, objects and surfaces, against all viruses, germs, fungi and bacteria. ATTENTION! In the room are not allowed in people and animals. The effective time of irradiation depends on the distance to the disinfected surface and direct radiation exposure. It should be assumed that in the case of direct access and a short distance of up to 2 m, the time sufficient for effective sterilization is 30 minutes, in the entire room with a maximum area of about 20 m2, the recommended exposure time - 2 to 8 hours.

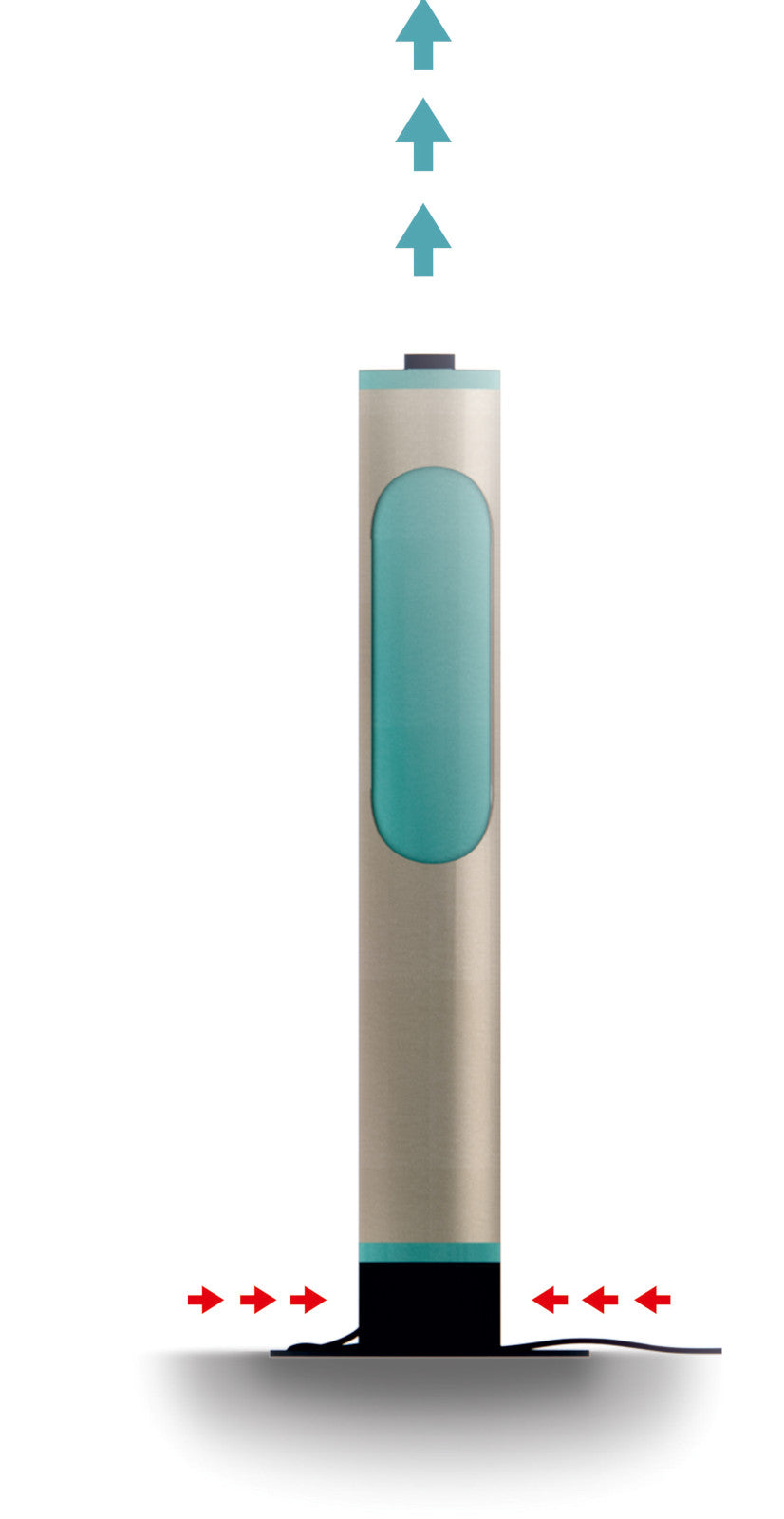

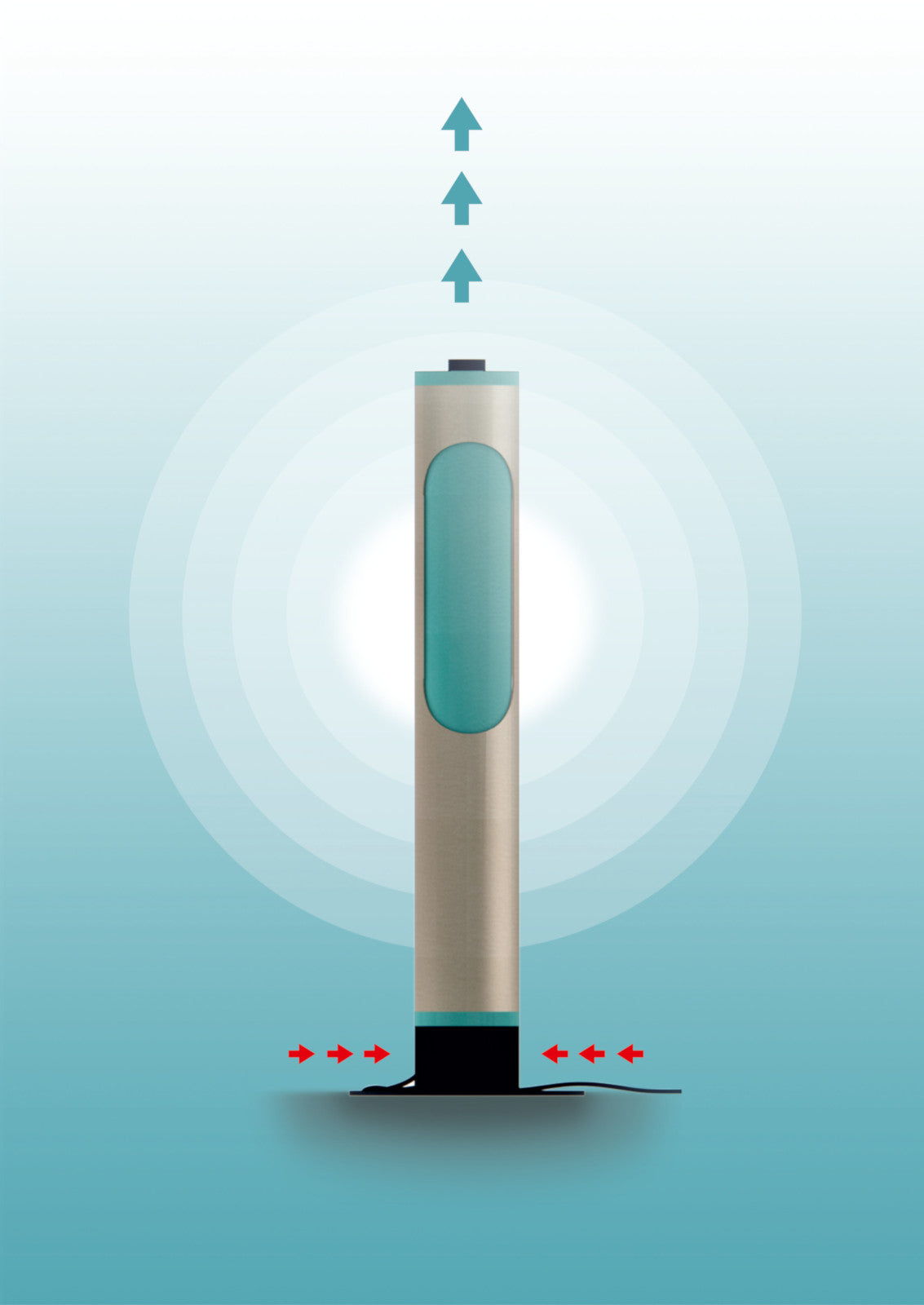

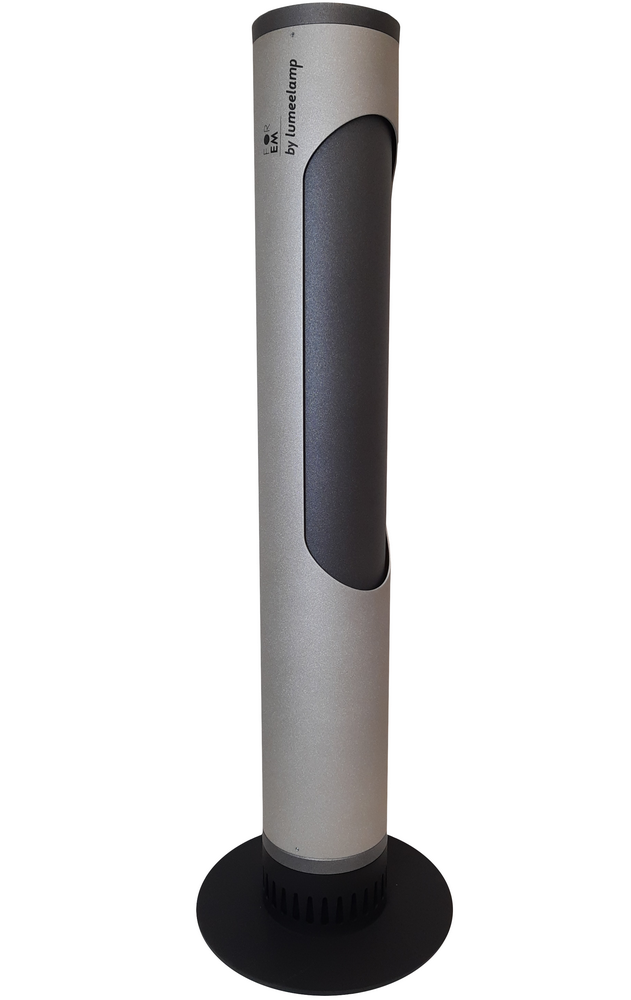

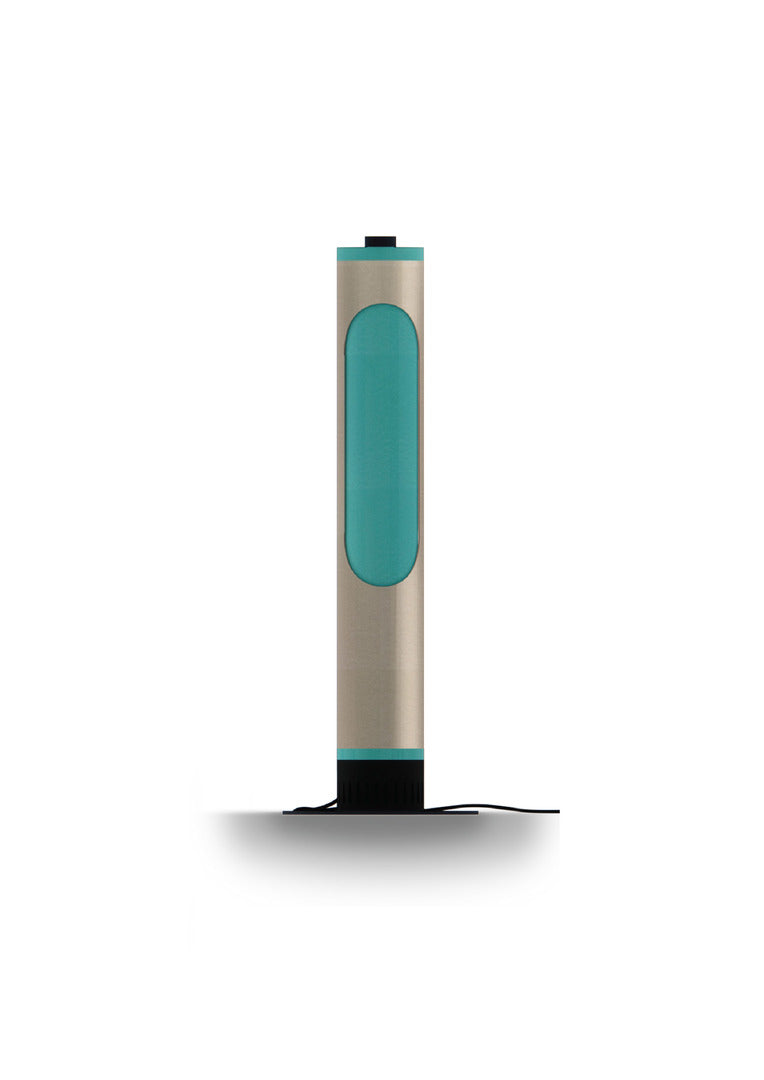

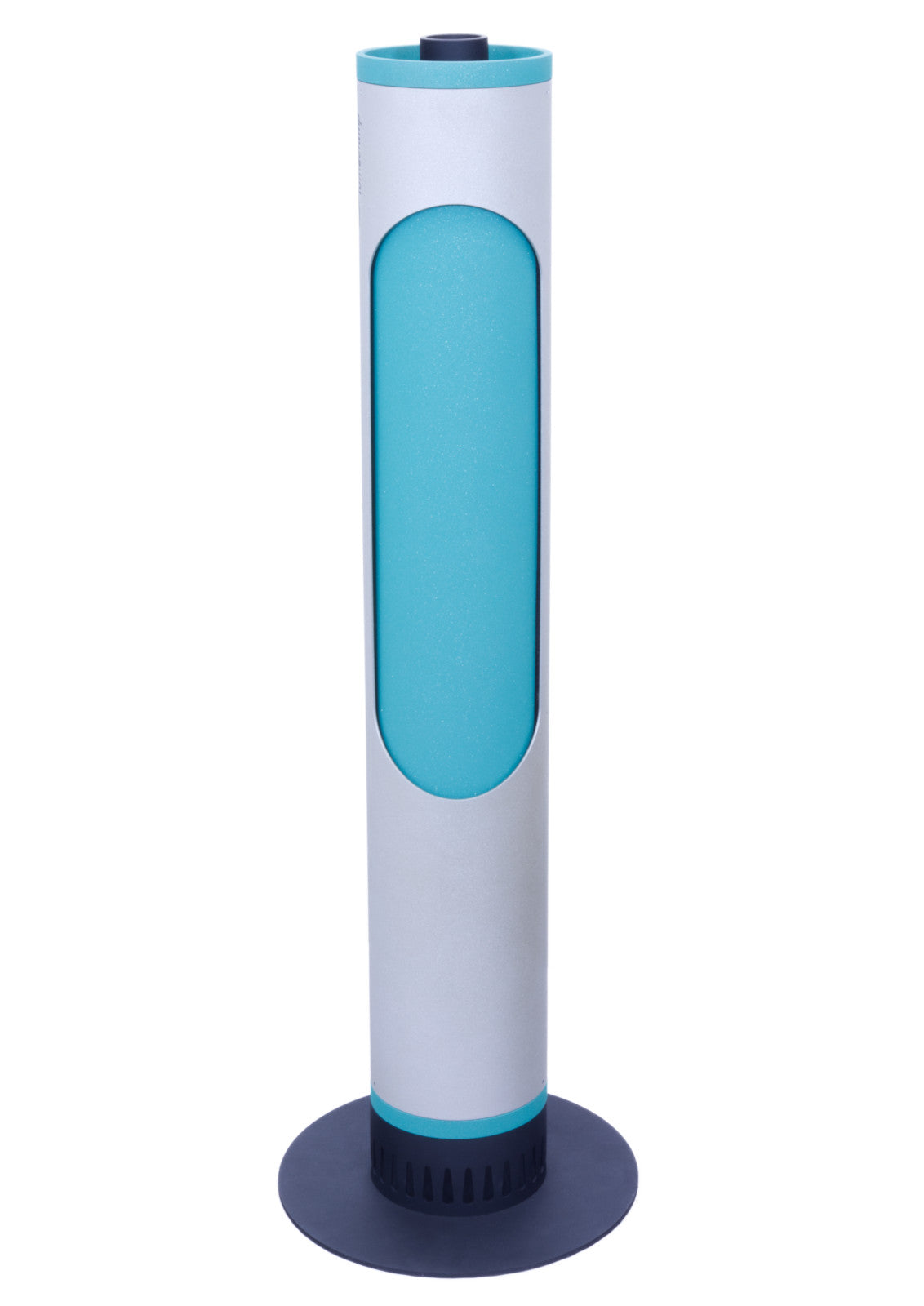

CLOSED MODE

The UV-C radiator chamber is closed, the ventilation system is automatically turned on and the air flows through the radiator chamber, which is filtered, cleaned and sterilized. ATTENTION! It is very important to carefully close the UV-C lamp chamber so that the radiation does not leak outside the device. The room is safe and people and animals can stay in the room, we recommend using the device all the time when new people enter and leave the room. So that the air is sterilized and cleaned on a regular basis. Two filtration speed/operating modes to choose: - silent - turbo

KILLS VIRUSES AND BACTERIA The use of UVC radiation as a means of combating the COVID-19 pandemic and for thorough disinfection has proven to be extremely efficient and sustainable, and has already been confirmed by numerous institutions and studies. A disinfection efficiency of 99.99% can be achieved.

STERILIZES THE AIR Disinfects indoor air and frees it from aerosols, germs, viruses, fungi and bacteria.

STERILIZES SURFACES All viruses, fungi, bacteria and other pathogens that can be found not only in the air but also on surfaces are removed by LumeeLamp.

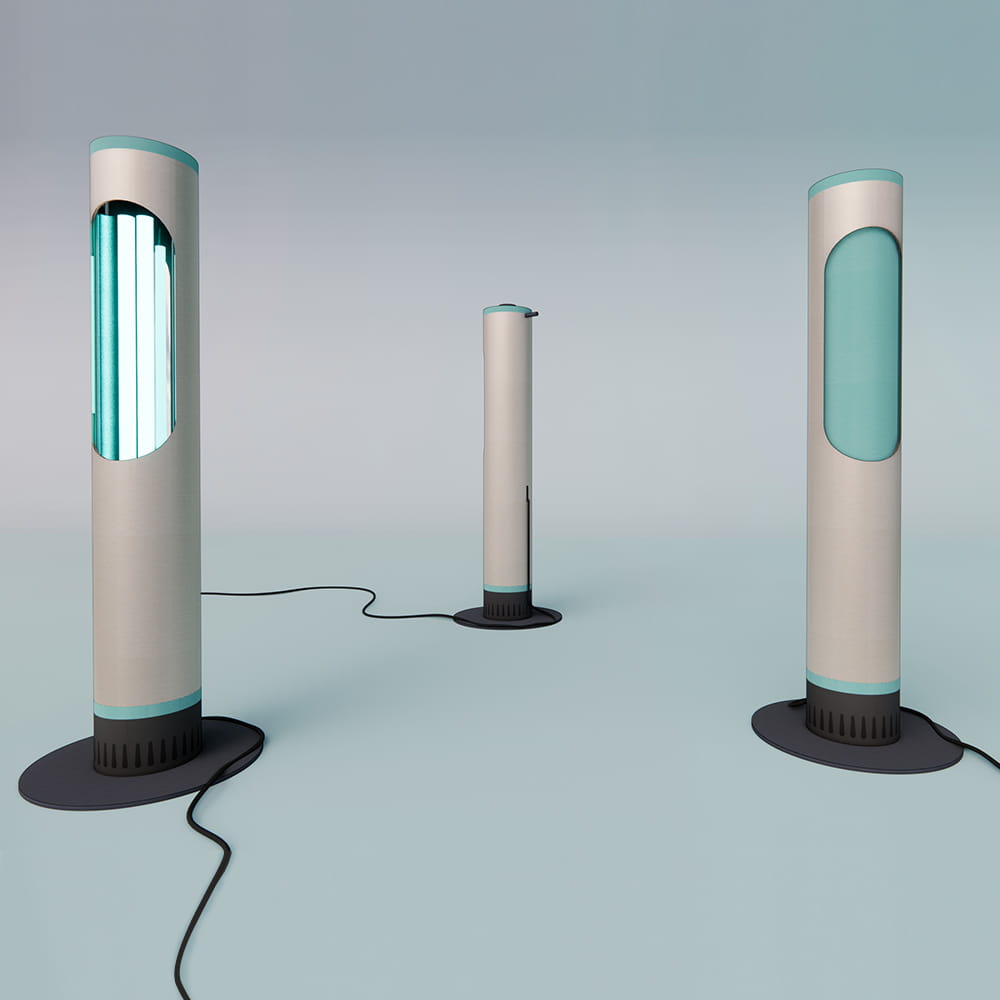

UNIQUE DESIGN The innovative design solution enables the use of Lumee Lamp - Sterilizer Dual for surface sterilization as well as filtration and sterilization of air.

PURIFIES INDOOR AIR The integrated activated carbon filter cleans the air in rooms and removes both unpleasant smells and impurities.

APPLICATION AREAS There is an almost endless number of application areas: hospitals, schools & kindergartens, doctor's offices & treatment rooms, public facilities & offices, retirement homes, offices, pharmacies, hotels, restaurants, cafes, canteens, conference & training rooms, beauty salons, hairdressers, private households etc.

FUNCTIONALITY By simply replacing the UVC lamp with a conventional PL-L fluorescent tube, the disinfection device can be converted into a designer lamp

The lifetime of the UV-C radiator is 8000 hours and the replacement frequency depends on the operating time of the device. For very intensive use, similar to 24-hour operation, for the device to operate effectively, we recommend replacing it once a year. Please use only the UVC PL-L 36W/4P (2G11/254nm) lamp. We recommend purchasing UV-C radiators in our company. Please replace the UV-C radiator after turning off the power.

TECHNICAL SPECIFICATIONS:

SUPPLY VOLTAGE: 230 V/50 Hz

POWER CONSUMPTION: 48 VA

DISINFECTED AREA: 15-20 m2

DISINFECTED CUBATURE: 35-50 m3

RADIATION SOURCE: UVC radiator PL-L 36W/4P, 2G11

RAYS UV-C: wavelenght – 254 nm

RADIATION INTENSITY UV-C FROM DISTANCE 1 M: 1,4 W/m2 TR LIFETIME OF THE UV-C

RADIATOR SOURCE: 8000 h

EFFICIENCY OF FAN: 106 M3/h

USABLE AIR FILTRATION EFFICIENCY: silent mode – 39 m3/h turbo mode – 68 m3/h

NOISE LEVEL: silent mode – 33 dB turbo mode – 46 dB

FILTER: integrated carbon filter

ELECTRIC SHOCK PROTECTION CLASS: class I

CASE TYPE: IP 20

CABLE LENGTH: 2 m

SWITCHING ON: switch

DIMENSIONS: 790 x 120 x 120 mm,

base diameter – 250 mm WEIGHT: 7,5 kg

PATENT NR: P.434995

SAFETY & PROTECTION:

UVC RADIATION IS HARMFUL TO THE SKIN AND EYES. USE LUMEE LAMP - STERILIZER DUAL 36F WITH SPECIAL CARE, FOLLOWING THE INSTRUCTIONS BELOW: During the first 100 hours of operation, ventilate the room every few hours, after this period it is not necessary. ATTENTION! In the event of breakage of the UV-C lamp, please be especially careful. Carefully remove all pieces of glass and replace the air filter. As there are mercury vapors in the UV-C lamps, please wear protective gloves and ventilate the room.
